Ducted and ductless mini split systems are two popular options for heating and cooling homes. The main difference is that ducted mini splits use air ducts to distribute air throughout your home, while ductless mini splits don’t need any ductwork and deliver air directly into rooms.
Ducted systems are hidden away and can heat or cool your entire home, but they cost more to install. Ductless systems are easier to install, more energy-efficient, and give you control over individual rooms, but they have visible indoor units on your walls. Your choice depends on your home’s layout, budget, and personal preferences.
The Basics of Mini Split Systems

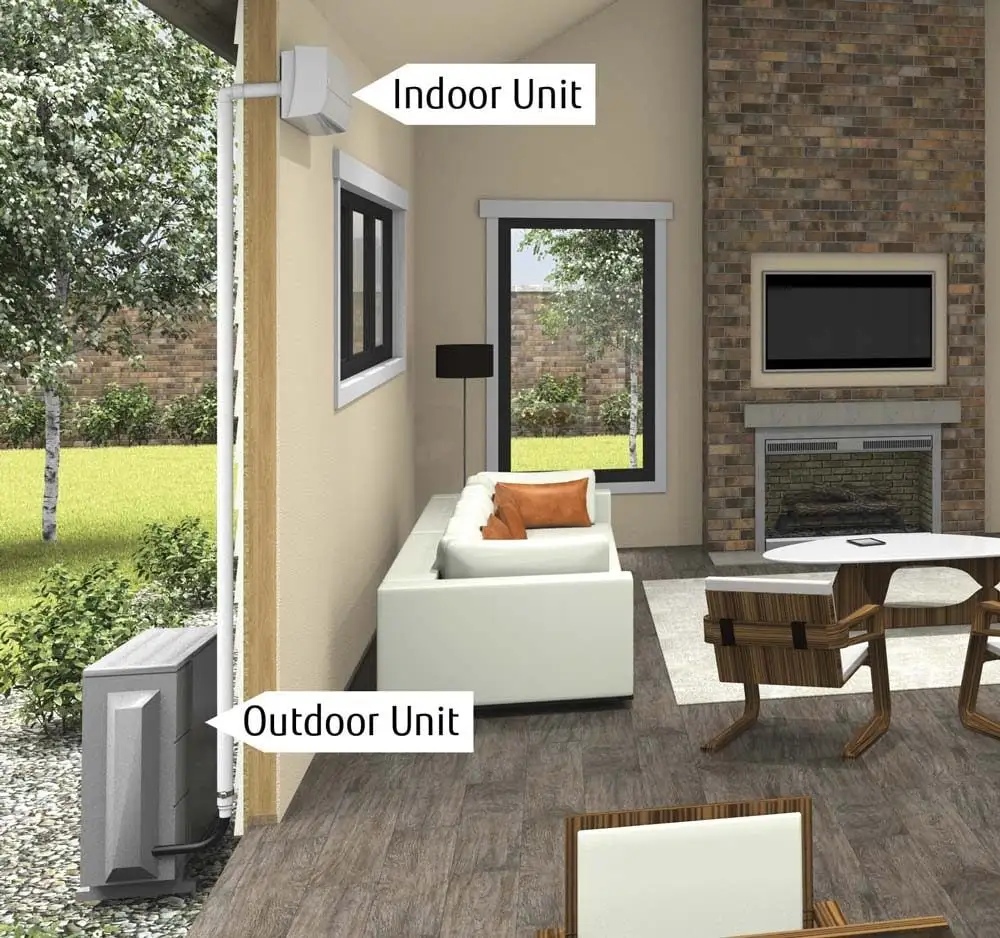

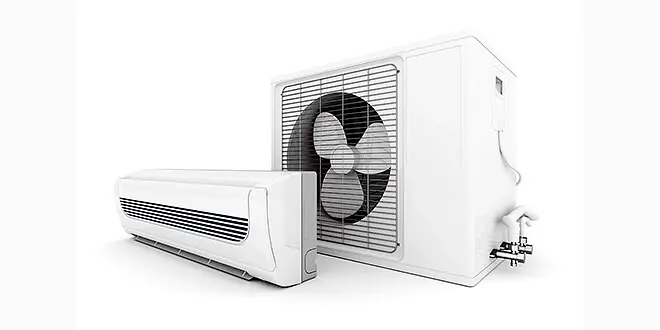

Mini split systems are heating and cooling systems that have two main parts: an outdoor unit and one or more indoor units. They’re called “split” systems because these parts are separate from each other. Unlike traditional central air systems, mini splits don’t need big, bulky ductwork throughout your home.
These systems work by using refrigerant to transfer heat between the indoor and outdoor units. In summer, they remove heat from your home to cool it down. In winter, they can reverse this process to bring heat inside. This makes them great for year-round comfort.
Mini splits are known for being energy-efficient because they avoid the energy losses associated with ductwork. They’ve become super popular in recent years because they’re flexible and can be installed in many different types of homes. Now, let’s look at the two main types: ducted and ductless.

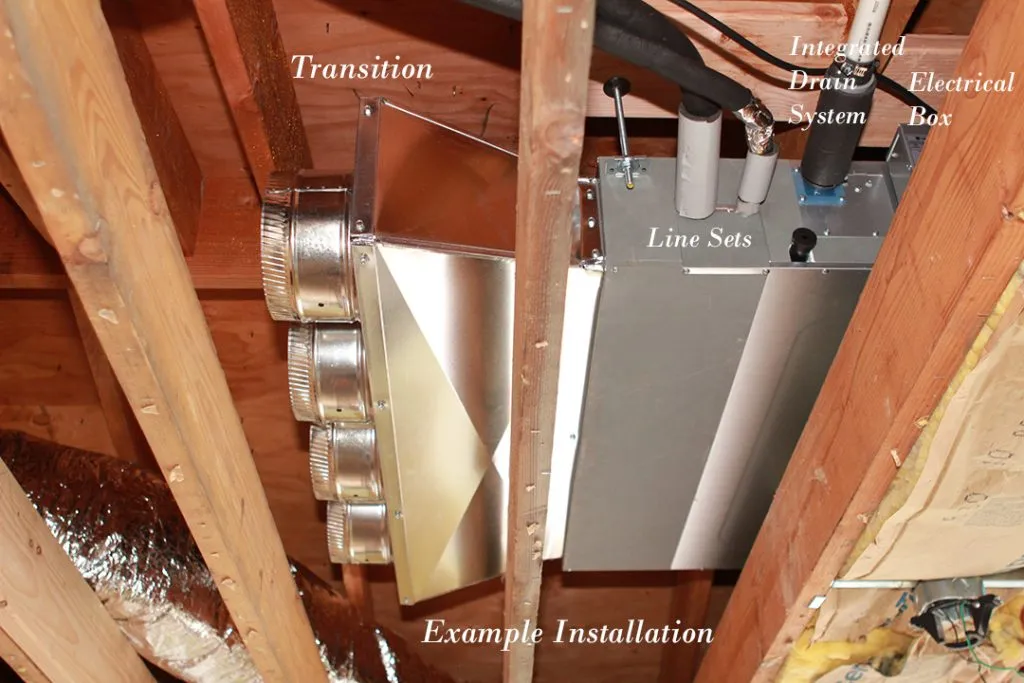

What Is a Ducted Mini Split?
A ducted mini split system uses small ducts to distribute air throughout your home. The indoor unit is typically installed in a ceiling or closet, hidden from view. From there, small ducts carry the conditioned air to different rooms in your house.
How Ducted Mini Splits Work
Ducted mini splits work similarly to traditional central air systems but on a smaller scale. The indoor unit, often called an air handler, connects to a series of small ducts. These ducts then connect to vents in your ceilings, floors, or walls.
When the system runs, it pulls air from your rooms through return vents. The air passes through the indoor unit where it’s heated or cooled. Then, the conditioned air is pushed back through the supply ducts and into your rooms. The whole process is controlled by a thermostat, just like a regular central air system.
Advantages of Ducted Mini Splits
- Hidden from view – Since the indoor unit and ductwork are concealed, you won’t see any equipment in your living spaces.
- Whole-home comfort – One ducted system can serve multiple rooms or an entire floor of your home.
- Consistent look – With only small vents visible, your home’s appearance stays clean and consistent.
- Quieter operation – The air handler is usually tucked away, so you’ll hear less noise from the system.
Disadvantages of Ducted Mini Splits
- Higher installation costs – Installing ductwork adds to the overall expense.
- Less energy efficient – Some energy is lost through the ducts, even with these smaller systems.
- Requires adequate space – You need room for the air handler and ductwork, usually in an attic, basement, or drop ceiling.
- Less zoning flexibility – While better than traditional systems, ducted mini splits offer less room-by-room control than ductless options.

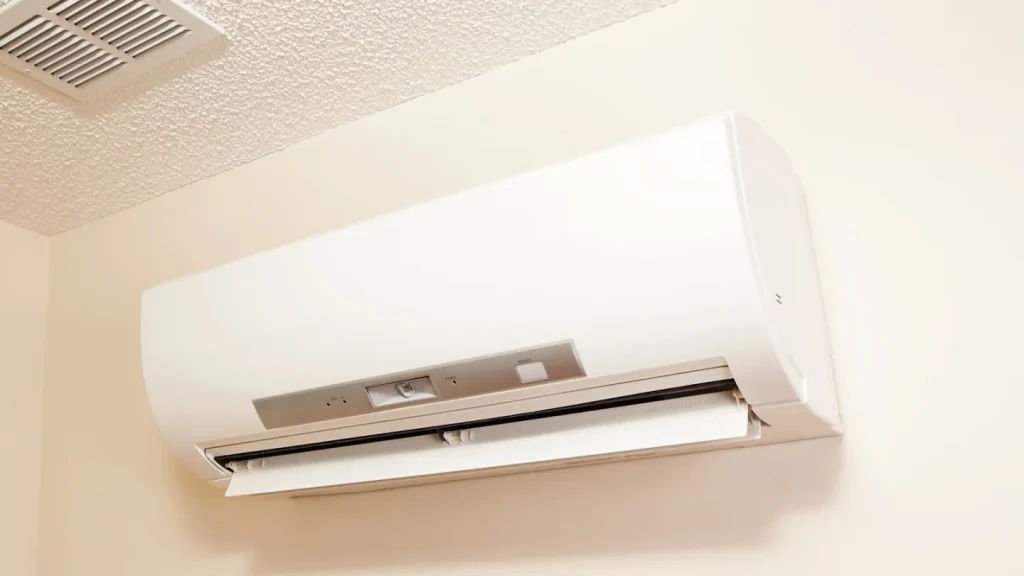

What Is a Ductless Mini Split?
A ductless mini split system, as the name suggests, doesn’t use any ducts at all. Instead, the indoor units are mounted directly on walls or ceilings in the rooms you want to heat or cool. These indoor units connect directly to the outdoor unit through a small hole in the wall.
How Ductless Mini Splits Work
Ductless systems have wall-mounted or ceiling-mounted indoor units in each room or zone you want to condition. Each indoor unit connects to the outdoor unit through a conduit that houses the refrigerant lines, power cable, and condensate drain.
The indoor units pull air from the room, condition it, and then blow it back into the same room. Each indoor unit can be controlled separately, allowing different temperatures in different rooms. This is called “zoning” and it’s one of the biggest benefits of ductless systems.
Advantages of Ductless Mini Splits
- Energy efficiency – Without ducts, there’s no energy loss through ductwork, making these systems very efficient.
- Zone control – You can set different temperatures in different rooms, only using energy where you need it.
- Easier installation – No ductwork means installation is simpler, faster, and less disruptive.
- Flexibility – Great for additions, renovations, or homes without existing ductwork.
- Lower overall cost – While the equipment may cost more, the total installation is often cheaper than ducted systems.
Disadvantages of Ductless Mini Splits
- Visible indoor units – The wall-mounted units are visible in your living spaces.
- Aesthetic concerns – Some people don’t like the look of the indoor units on their walls.
- Multiple units needed – For whole-home comfort, you’ll need several indoor units.
- Regular cleaning required – The indoor units need frequent filter cleaning to maintain efficiency.
Ducted vs Ductless: Head-to-Head Comparison
Let’s compare these two systems across several important factors to help you decide which might be better for your home.
Installation and Cost
Ducted Mini Splits: Installation is more complex and expensive because it involves running ductwork. Expect to pay between $5,000 and $12,000 for a typical installation, depending on the size of your home and the amount of ductwork needed.
Ductless Mini Splits: Installation is simpler and less invasive. A basic single-zone system might cost $3,000 to $5,000 installed. Multi-zone systems with several indoor units can range from $7,000 to $15,000, depending on how many zones you need.
Energy Efficiency
Ducted Mini Splits: While more efficient than traditional central air systems, ducted mini splits lose some energy through the ductwork. They typically have SEER ratings (efficiency ratings) of 16-20.
Ductless Mini Splits: These are generally more energy-efficient because there’s no ductwork energy loss. Many ductless systems have SEER ratings of 20-30, making them very efficient. Plus, the ability to heat or cool only the rooms you’re using saves additional energy.
Aesthetics and Space Requirements
Ducted Mini Splits: The equipment is hidden, with only vents visible in your rooms. However, you need space for the air handler and ductwork, usually in an attic, basement, or drop ceiling.
Ductless Mini Splits: The indoor units are visible on your walls or ceilings. While manufacturers have worked to make them more attractive, some people still find them unappealing. On the plus side, they don’t require extra space for ductwork.
Comfort and Control
Ducted Mini Splits: Provide consistent comfort throughout the zones they serve. Typically controlled by one or a few thermostats, offering less individualized control.
Ductless Mini Splits: Each indoor unit can be controlled separately, allowing different temperatures in different rooms. This can improve comfort by letting family members set their preferred temperatures in their own spaces.
Maintenance Requirements
Ducted Mini Splits: Require regular filter changes and occasional duct cleaning. The air handler may be easier to service since it’s in a utility space.
Ductless Mini Splits: Need frequent filter cleaning (usually monthly) for each indoor unit. However, there’s no duct maintenance to worry about.
Comparison Chart: Ducted vs Ductless Mini Splits
| Feature | Ducted Mini Split | Ductless Mini Split |
|---|---|---|
| Installation Complexity | Higher (requires ductwork) | Lower (no ductwork needed) |
| Cost Range | $5,000-$12,000 | $3,000-$15,000 (depends on zones) |
| Energy Efficiency | Good (SEER 16-20) | Excellent (SEER 20-30) |
| Aesthetics | Hidden equipment, only vents visible | Wall units visible in living spaces |
| Zone Control | Limited | Excellent (room-by-room) |
| Maintenance | Filter changes, duct cleaning | Regular filter cleaning for each unit |
How to Choose the Right System for Your Home
Choosing between ducted and ductless mini splits depends on several factors specific to your home and preferences.
Consider Your Home’s Layout
If you have an open floor plan, a ducted system might make more sense. One air handler can serve a large open area efficiently. For homes with many small rooms or unusual layouts, ductless units offer more flexibility.
Homes with attics, basements, or drop ceilings have the space needed for ducted systems. If your home lacks these spaces, ductless might be your only option without major construction.
Think About Your Budget
Consider both upfront costs and long-term operating costs. Ductless systems often cost less to install but might require more units for whole-home comfort. Ducted systems cost more upfront but might be more economical for conditioning large, open spaces.
Remember that ductless systems typically offer better energy efficiency, which means lower monthly bills. Over time, this can offset a higher initial investment.
Weigh Aesthetics vs. Functionality
If maintaining your home’s interior appearance is a top priority, ducted systems offer a cleaner look with only small vents visible. If you don’t mind the appearance of wall-mounted units, ductless systems offer better zone control and energy efficiency.
Some homeowners choose a hybrid approach, using ducted mini splits in main living areas and ductless units in additions or less frequently used spaces.
Consider Future Needs
Think about how long you plan to stay in your home and any future renovations. Ductless systems are easier to expand later if you add rooms. Ducted systems might be harder to modify but could add more value to your home when selling.
Installation and Maintenance Considerations
Proper installation and maintenance are crucial for either system type to perform well and last a long time.
Professional Installation Is Key
Both ducted and ductless mini splits require professional installation. DIY installation is not recommended and may void warranties. When choosing an installer:
- Look for contractors with specific experience installing mini split systems
- Check for proper licensing and insurance
- Ask about manufacturer certifications
- Get multiple quotes to compare
- Read reviews from previous customers
A properly sized system is crucial for efficiency and comfort. Make sure your contractor performs a detailed load calculation rather than just using square footage to determine system size.
Ongoing Maintenance Requirements
For ducted mini splits:
- Change or clean the main filter every 1-3 months
- Have ducts inspected and cleaned every 3-5 years
- Schedule professional maintenance annually
- Keep the outdoor unit clear of debris and vegetation
For ductless mini splits:
- Clean the filters in each indoor unit monthly
- Keep indoor units dust-free
- Ensure the area around outdoor units stays clear
- Schedule professional maintenance annually
- Check condensate drains periodically to prevent clogs
Regular maintenance extends system life and maintains efficiency. Many HVAC companies offer maintenance plans that include regular check-ups and priority service.
Frequently Asked Questions
Which is more energy-efficient: ducted or ductless mini splits?
Ductless mini splits are generally more energy-efficient because they don’t lose energy through ductwork. They also allow you to heat or cool only the rooms you’re using. However, modern ducted mini splits are still much more efficient than traditional central air systems.
How long do mini split systems last?
With proper maintenance, both ducted and ductless mini split systems typically last 15-20 years. This is comparable to or slightly longer than traditional HVAC systems. Regular professional maintenance can help extend the lifespan of either system type.
Can mini splits provide both heating and cooling?
Yes! Most mini split systems are heat pumps, which means they can both heat and cool your home. They work by moving heat rather than generating it, making them very efficient for heating in moderate climates. In extremely cold regions, they may need supplemental heating during the coldest days.
Are mini splits noisy?
Mini splits are generally quieter than traditional HVAC systems. Ductless indoor units typically operate at 20-40 decibels, about the sound level of a whisper or quiet library. Ducted systems may be even quieter in living spaces since the air handler is hidden away.
Can I install a mini split system myself?
Professional installation is strongly recommended for mini split systems. Improper installation can lead to refrigerant leaks, electrical problems, water damage, and poor performance. Most manufacturers require professional installation to maintain warranty coverage.
Do mini splits work in very cold climates?
Many modern mini splits are designed to work efficiently even in cold climates. Look for models specifically rated for low-temperature operation. Some can provide heating in temperatures as low as -13°F (-25°C). In extremely cold regions, a backup heating source might be recommended.
Which system is better for allergies?
Both systems can be good for allergy sufferers when properly maintained. Ductless systems avoid the potential dust and allergen buildup in ductwork. However, ducted systems can be equipped with high-efficiency filters that may remove more allergens from the air. Regular filter cleaning or replacement is essential for either system.
Making Your Decision: Ducted or Ductless?
Choosing between ducted and ductless mini splits comes down to your specific needs, home layout, and preferences. Ducted systems offer a cleaner look with hidden equipment but require more installation work and space for ductwork. Ductless systems provide superior zone control and energy efficiency but have visible indoor units.
Many homeowners find that the energy savings and flexibility of ductless systems outweigh the aesthetic concerns. Others prefer the hidden equipment of ducted systems, especially in main living areas. Some even choose a hybrid approach, using both system types in different areas of their home.
Whatever you decide, working with a qualified HVAC professional is essential for proper sizing, installation, and maintenance. They can help you evaluate your specific situation and recommend the best solution for your home and budget.
