What is an AC Expansion Valve?
An AC expansion valve is a small but super important part in your air conditioner. It controls how much refrigerant flows through your AC system. Think of it like a traffic light for the cold liquid that makes your home cool. The AC expansion valve helps change the pressure of the refrigerant, which makes it get very cold. This cold refrigerant then absorbs heat from your home, making your rooms feel nice and cool.

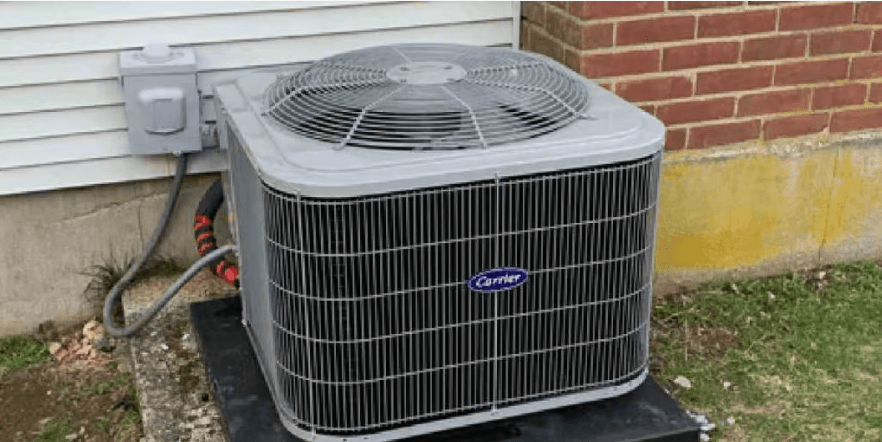

The AC expansion valve sits between two main parts of your air conditioner: the condenser (usually outside your home) and the evaporator (inside your home). When working right, it helps your AC run smoothly and keeps your energy bills lower.
Without a working AC expansion valve, your air conditioner might blow warm air or stop working completely. That’s why understanding this small part can help you keep your home comfortable all summer long.
How Does an AC Expansion Valve Work?
The AC expansion valve works like magic to help cool your home. Let’s break down how it works in simple steps:
Step 1: Receiving High-Pressure Liquid
The process starts when hot, high-pressure liquid refrigerant flows from your outdoor unit (condenser) toward the expansion valve. This liquid is under lots of pressure and is still warm from being outside.
Step 2: Creating the Pressure Drop
When this liquid reaches the AC expansion valve, something amazing happens. The valve has a tiny opening that creates a “pressure drop.” This is like when you put your thumb over the end of a garden hose – the water sprays out faster through the smaller opening.
Step 3: Turning Liquid into Cold Mist
As the refrigerant passes through this small opening in the AC expansion valve, the pressure drops suddenly. This pressure change makes the refrigerant get super cold and turn into a cold mist (part liquid, part gas).
Step 4: Temperature Sensing
Most AC expansion valves have a special sensor called a “thermal bulb” that checks the temperature of the refrigerant after it leaves the evaporator coil. This helps the valve know if it needs to open wider or close a bit to keep the right amount of cooling happening.
Step 5: Automatic Adjustments
The clever thing about an AC expansion valve is that it can adjust itself based on how much cooling your home needs. On really hot days, it will allow more refrigerant to flow. On cooler days, it reduces the flow to save energy.
This whole process happens in a continuous cycle, with the AC expansion valve constantly making tiny adjustments to keep your home at just the right temperature.
Types of AC Expansion Valves
Not all AC expansion valves are the same. There are several different types, each with their own way of working. Let’s look at the main kinds you might find in your air conditioner:
Thermostatic Expansion Valve (TXV)
The thermostatic expansion valve, or TXV, is the most common type of AC expansion valve. It uses a temperature-sensing bulb filled with the same refrigerant as your system. When the temperature changes, the bulb expands or contracts, which opens or closes the valve. This type is great because it automatically adjusts to changing conditions in your home.
TXVs are reliable and help your AC run efficiently in different weather conditions. They’re like the smart version of expansion valves and are found in many modern air conditioning systems.
Automatic Expansion Valve (AEV)
The automatic expansion valve keeps a steady pressure in the evaporator, regardless of temperature changes. It’s simpler than a TXV but doesn’t adjust as well to changing conditions. These valves work best in systems that run under constant loads, like refrigerators, rather than home air conditioners that need to adjust to changing temperatures.
Electronic Expansion Valve (EEV)
The electronic expansion valve is the newest and most advanced type of AC expansion valve. It uses electronic sensors and a small motor to precisely control refrigerant flow. These valves can make very fine adjustments and are controlled by your AC’s computer brain.
EEVs offer the best efficiency and performance but are more expensive. You’ll find them in high-end and newer air conditioning systems where energy efficiency is a top priority.
Float Valve
Float valves are an older type of expansion device that uses a floating ball to control refrigerant flow. As liquid refrigerant fills a chamber, the float rises and closes the valve. These are less common in modern home AC systems but might be found in older units.
Capillary Tube
While not technically a valve, a capillary tube serves the same purpose as an AC expansion valve in some systems. It’s simply a very thin copper tube that creates resistance to flow. Capillary tubes are fixed and can’t adjust to changing conditions, but they’re inexpensive and reliable for smaller systems like window air conditioners.
Knowing which type of AC expansion valve your system has can help you understand how it works and what might go wrong if your AC isn’t cooling properly.
Signs of a Failing AC Expansion Valve
Your AC expansion valve might be small, but when it starts to fail, you’ll notice big problems with your cooling. Here are the warning signs that your expansion valve might need attention:
Warm Air Coming From Vents
If your air conditioner is running but blowing warm air, your AC expansion valve might be stuck closed. When this happens, not enough refrigerant can flow through the system to create cooling. You might notice that your home feels stuffy and uncomfortable even with the AC running full blast.
Frost or Ice on the Evaporator Coil
A strange sign of expansion valve problems is ice forming inside your air conditioner. If your AC expansion valve is stuck open, too much refrigerant flows into the evaporator coil. This makes the coil get too cold and frost or ice forms on it. You might even see ice on the refrigerant lines coming from your indoor unit.
Short Cycling (AC Turns On and Off Frequently)
When your air conditioner turns on and off every few minutes, it’s called “short cycling.” A faulty AC expansion valve can cause this problem by creating uneven cooling. Your system might shut down because it thinks it’s too cold, only to turn back on moments later when it warms up again.
Higher Than Normal Energy Bills
Have you noticed your electricity bills climbing even though you haven’t changed how you use your AC? A failing expansion valve makes your system work harder to cool your home. This extra effort shows up as higher energy costs on your monthly bill.
Inconsistent Cooling Throughout Your Home
When your AC expansion valve isn’t working right, you might notice some rooms are too cold while others stay warm. This happens because the valve isn’t properly regulating refrigerant flow, causing uneven cooling performance.
Strange Hissing or Bubbling Sounds
Listen carefully to your air conditioner. If you hear unusual hissing, bubbling, or gurgling sounds, it could be refrigerant passing improperly through a damaged AC expansion valve. These sounds often mean refrigerant is leaking or flowing incorrectly.
If you notice any of these signs, it’s best to call a professional HVAC technician right away. Continuing to run your AC with a bad expansion valve can damage other, more expensive parts of your system.
Maintenance and Care for AC Expansion Valves
Taking care of your AC expansion valve helps your air conditioner last longer and work better. While you can’t fix the valve yourself, there are things you can do to keep it in good shape and know when to call for help.
Regular Professional Maintenance
The best way to care for your AC expansion valve is to schedule yearly maintenance with a professional HVAC technician. During these check-ups, the technician will:
- Check the valve for proper operation
- Clean any dirt or debris around the valve
- Test refrigerant pressure to ensure the valve is working correctly
- Look for signs of wear or damage
- Make adjustments if needed
This yearly check-up can catch small problems before they become big, expensive repairs.
Keep Your System Clean
While you can’t directly clean the AC expansion valve (it’s inside sealed parts of your system), keeping the rest of your AC clean helps the valve work better. Make sure to:
- Change or clean your air filter every 1-3 months
- Keep the area around your outdoor unit free of leaves, dirt, and debris
- Make sure indoor vents aren’t blocked by furniture or curtains
Clean systems have better airflow, which helps your expansion valve regulate temperature more effectively.
Watch Your Thermostat Settings
Believe it or not, how you use your thermostat affects your AC expansion valve. Constantly changing the temperature or setting it extremely low puts extra stress on the valve. Instead:
- Use a programmable thermostat to make gradual temperature changes
- Set reasonable temperatures (78°F is recommended for summer)
- Avoid turning the AC on and off frequently
Know When to Call a Professional
Some signs mean you should call for help right away:
- Ice forming on any part of your AC system
- Unusual noises coming from your air conditioner
- Air that’s not as cold as it should be
- AC running constantly without reaching the set temperature
These could indicate problems with your AC expansion valve that need professional attention.
Consider the Age of Your System
Most AC expansion valves last 10-15 years, about the same as your air conditioner. If your system is getting older and having problems, it might be more cost-effective to replace the entire system rather than just fixing the valve.
Remember, you should never try to repair or replace an AC expansion valve yourself. The system contains refrigerant under pressure that requires special tools and training to handle safely.
When to Replace Your AC Expansion Valve
Sometimes fixing your AC expansion valve isn’t enough, and you need to replace it. Here’s how to know when it’s time for a new valve and what to expect during replacement.
Age of the Valve
Most AC expansion valves last about 10-15 years. If your valve is older than this, replacement might be better than repair. Older valves are more likely to fail again even after being fixed. If your air conditioner is more than 10 years old and having valve problems, it’s often a sign that replacement time is approaching.
Repeated Problems
If you’ve already had your AC expansion valve repaired but keep having the same cooling issues, it’s probably time for a replacement. Multiple repairs can cost more than simply installing a new valve. Think of it like an old car that keeps breaking down – at some point, it makes more sense to get a new one.
Refrigerant Leaks
If your AC expansion valve is leaking refrigerant, replacement is almost always necessary. Leaks can’t usually be repaired effectively, and refrigerant is expensive to replace. Plus, leaking refrigerant is bad for the environment. A new valve will create a proper seal and keep your system running efficiently.
Cost Considerations
Replacing an AC expansion valve typically costs between $200-$500, depending on your system type and where you live. While this might seem expensive, continuing to run your AC with a faulty valve can damage other components like the compressor, which can cost $1,000-$2,500 to replace.
The Replacement Process
When a technician replaces your AC expansion valve, they’ll:
- Recover any remaining refrigerant from your system
- Remove the old valve
- Install the new AC expansion valve
- Vacuum the system to remove air and moisture
- Recharge the system with the correct amount of refrigerant
- Test the system to ensure proper operation
This process usually takes 2-3 hours and should only be done by a licensed HVAC professional.
Upgrading Options
When replacing your AC expansion valve, you might have the option to upgrade to a more efficient model. For example, if you currently have an automatic expansion valve, upgrading to a thermostatic or electronic expansion valve could improve your system’s efficiency and save money on energy bills.
Remember that a properly working AC expansion valve is crucial for your air conditioner’s performance. Don’t delay replacement if your technician recommends it – doing so could lead to bigger problems and higher repair costs down the road.
Frequently Asked Questions About AC Expansion Valves
Here are answers to common questions about AC expansion valves to help you better understand this important part of your cooling system.
How much does it cost to replace an AC expansion valve?
Replacing an AC expansion valve typically costs between $200 and $500, including parts and labor. The exact price depends on your AC model, the type of valve needed, and labor rates in your area. Some high-efficiency systems with electronic expansion valves might cost more to replace.
Can I replace an AC expansion valve myself?
No, you should not try to replace an AC expansion valve yourself. This job requires specialized tools, knowledge of refrigerant handling, and proper licensing. Refrigerant is regulated by the EPA because it can be harmful to the environment and dangerous to handle. Always hire a licensed HVAC professional for this repair.
How long does an AC expansion valve last?
A typical AC expansion valve lasts about 10-15 years, which is similar to the lifespan of most air conditioning systems. With proper maintenance, some valves can last the entire life of your AC unit. However, factors like system usage, maintenance history, and manufacturing quality can affect how long your valve lasts.
Will a bad expansion valve cause my AC to freeze up?
Yes, a faulty AC expansion valve is one of the most common causes of a frozen evaporator coil. If the valve is stuck open, too much refrigerant flows into the evaporator, causing temperatures to drop below freezing. This creates ice buildup on the coil and can eventually block airflow completely.
What’s the difference between an expansion valve and a capillary tube?
Both devices serve the same basic function of controlling refrigerant flow, but they work differently. An AC expansion valve can adjust the refrigerant flow based on cooling demand, making it more efficient for varying conditions. A capillary tube is simply a fixed-size tube that cannot adjust to changing conditions. Expansion valves are more common in larger home AC systems, while capillary tubes are often found in smaller units like window air conditioners.
Can a dirty air filter affect my AC expansion valve?
Yes, a dirty air filter can indirectly damage your AC expansion valve. When airflow is restricted by a clogged filter, the evaporator coil can get too cold. This can cause the expansion valve to malfunction as it tries to compensate for the temperature changes. Regularly changing your air filter is an easy way to protect your expansion valve and entire AC system.
How do I know if my AC has an expansion valve or an orifice tube?
Most residential split-system air conditioners use expansion valves. The best way to determine which your system has is to check your AC’s manual or ask an HVAC technician. Physically, expansion valves are typically larger and have a bulb attached to the suction line, while orifice tubes are smaller and simpler.
Can an AC expansion valve be repaired, or does it always need replacement?
In most cases, a faulty AC expansion valve needs to be replaced rather than repaired. These valves are sealed units with precise internal components that aren’t designed to be taken apart and fixed. Attempting to repair one could lead to refrigerant leaks or improper operation. Replacement ensures your system will work correctly and efficiently.
